MKRD背离 通达信 副图 源码 指标公式

本指标根据背离ABC指标改编。

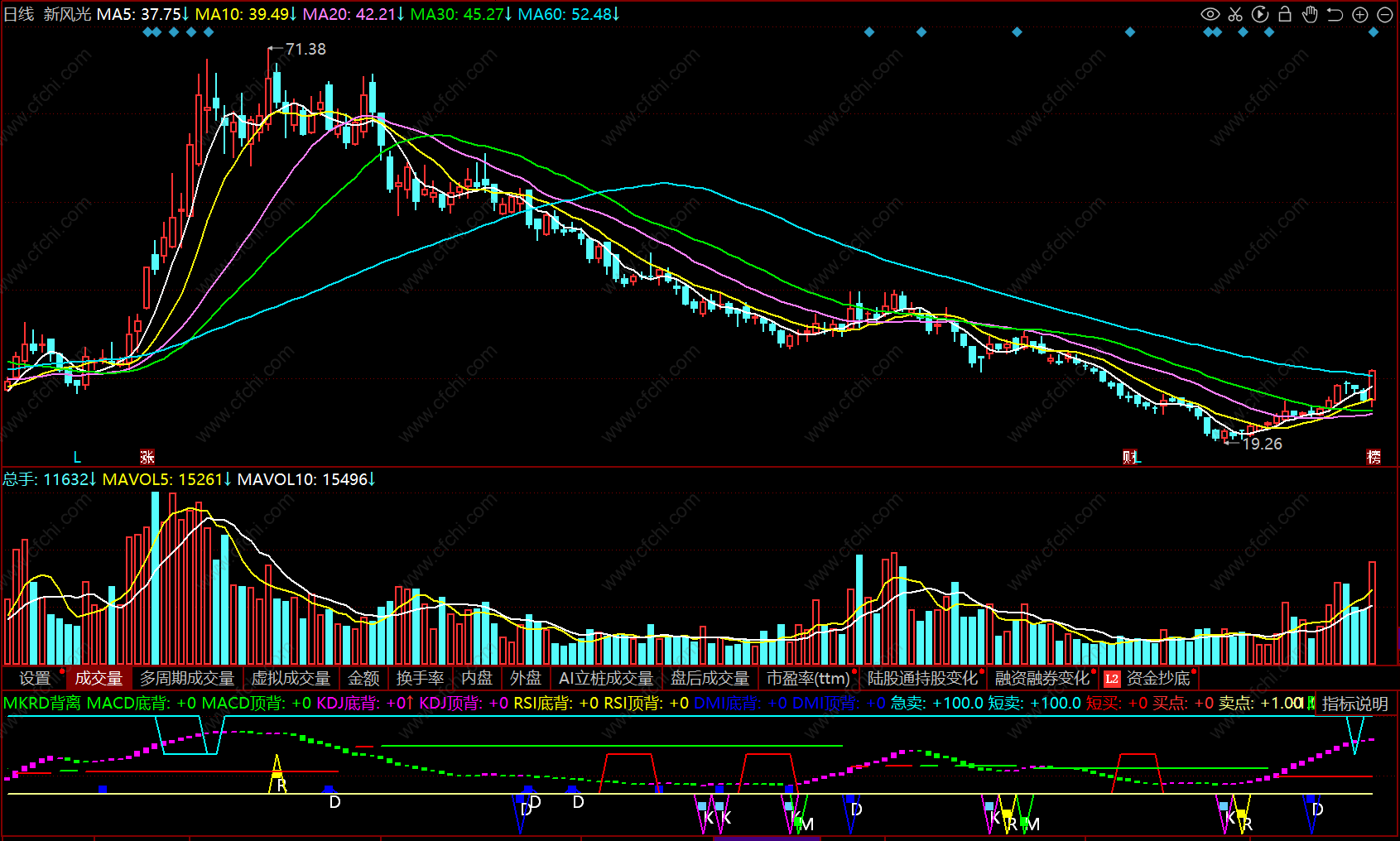

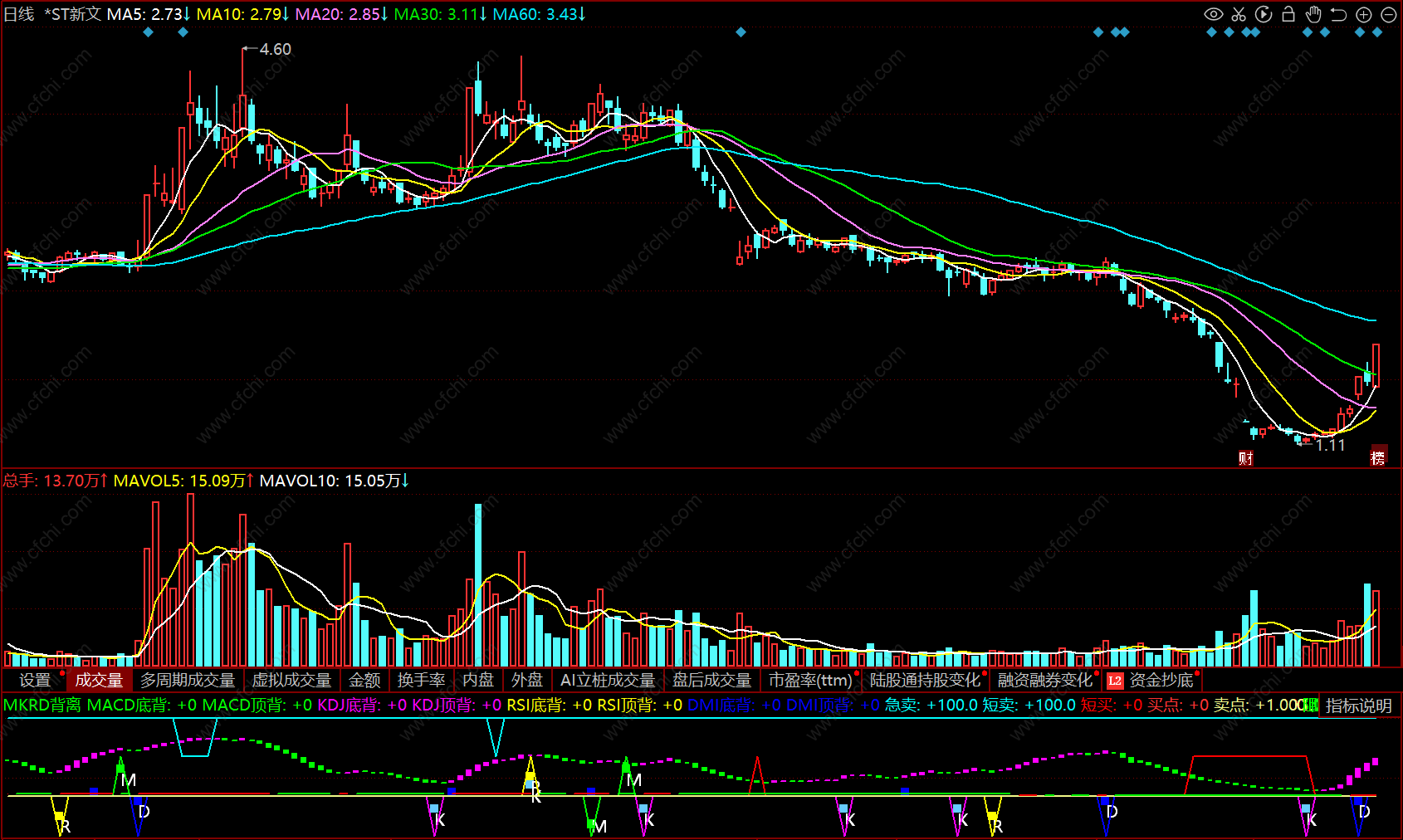

说明：由红绿相间的组成的K线，代表股价是处在多头行情还是空头行情。
在指标的底位出现的M（绿），K(紫），R（蓝），D（黄）及三角形分别是macd，kdj，rsi，dmi的顶底背离提示，它们有不同的颜色显示，向上三角形为顶背离，向下三角形为底背离，而非买卖点的提示，但对买卖操作具有非常重要的参考意义。
买点参考：本指标提供了压力与支撑方案，在低位有支撑且K线是红色，可跟进。低位出现红三角也是买点参考。
卖点参考：在高位出现K线变绿且出现压力提示，清仓。高位出现的倒三角或倒梯型也是减仓的信号，但是只要有支撑提示存在，这些信号多数为无效信号。
请配合大盘，均线，成交量和其它指标使用。

TRR := SUM(MAX(MAX(HIGH-LOW,ABS(HIGH-REF(CLOSE,1))),ABS(LOW-REF(CLOSE,1))),14);
HD := HIGH-REF(HIGH,1);
LD := REF(LOW,1)-LOW;
PDM:= SUM(IF(HD>0 AND HD>LD,HD,0),14);
MDM:= SUM(IF(LD>0 AND LD>HD,LD,0),14);
PDI:= PDM*100/TRR;
MDI:= MDM*100/TRR;
A1:=BARSLAST(REF(CROSS("MACD.DIFF"(12,26,9),"MACD.DEA"(12,26,9)),1));
B1:=REF(C,A1+1)>C AND REF("MACD.DIFF"(12,26,9),A1+1)<"MACD.DIFF"(12,26,9) AND CROSS("MACD.DIFF"(12,26,9),"MACD.DEA"(12,26,9));
A2:=BARSLAST(REF(CROSS("KDJ.K"(9,3,3),"KDJ.D"(9,3,3)),1));
B2:=REF(C,A2+1)>C AND REF("KDJ.K"(9,3,3),A2+1)<"KDJ.K"(9,3,3) AND CROSS("KDJ.K"(9,3,3),"KDJ.D"(9,3,3));
A3:=BARSLAST(REF(CROSS("RSI.RSI1"(6,12,24),"RSI.RSI2"(6,12,24)),1));
B3:=REF(C,A3+1)>C AND REF("RSI.RSI1"(6,12,24),A3+1)<"RSI.RSI1"(6,12,24) AND CROSS("RSI.RSI1"(6,12,24),"RSI.RSI2"(6,12,24));
C1:=BARSLAST(REF(CROSS("MACD.DEA"(12,26,9),"MACD.DIFF"(12,26,9)),1));
D1:=REF(C,C1+1)<C AND REF("MACD.DIFF"(12,26,9),C1+1)>"MACD.DIFF"(12,26,9) AND CROSS("MACD.DEA"(12,26,9),"MACD.DIFF"(12,26,9));
C2:=BARSLAST(REF(CROSS("KDJ.D"(9,3,3),"KDJ.K"(9,3,3)),1));
D2:=REF(C,C2+1)<C AND REF("KDJ.K"(9,3,3),C2+1)>"KDJ.K"(9,3,3) AND CROSS("KDJ.D"(9,3,3),"KDJ.K"(9,3,3));
C3:=BARSLAST(REF(CROSS("RSI.RSI2"(6,12,24),"RSI.RSI1"(6,12,24)),1));
D3:=REF(C,C3+1)<C AND REF("RSI.RSI1"(6,12,24),C3+1)>"RSI.RSI1"(6,12,24) AND CROSS("RSI.RSI2"(6,12,24),"RSI.RSI1"(6,12,24));
C4:=BARSLAST(REF(CROSS(MDI,PDI),1));
D4:=REF(C,C+1)<C AND REF(MDI,C4+1)>MDI AND CROSS(MDI,PDI);
A4:=BARSLAST(REF(CROSS(PDI,MDI),1));
B4:=REF(C,A4+1)>C AND REF(PDI,A4+1)<PDI AND CROSS(PDI,MDI);
//绘图
//MACD底背
MACD底背:IF(B1>0,-50,0),COLOR00FF00;
STICKLINE(B1>0,-30,-40,9,0),COLOR00FF00;
DRAWTEXT(B1>0,-35,'M'),COLORFFFFFF;
//MACD顶背
MACD顶背:IF(D1>0,50,0),COLOR00FF00;
STICKLINE(D1>0,30,40,9,0),COLOR00FF00;
DRAWTEXT(D1>0,35,'M'),COLORFFFFFF;
//KDJ底背
KDJ底背:IF(B2>0,-50,0),COLORFF00FF;
STICKLINE(B2>0,-10,-20,9,0),COLORFFCC66;
DRAWTEXT(B2>0,-15,'K'),COLORFFFFFF;
//KDJ顶背
KDJ顶背:IF(D2>0,50,0),COLORFF00FF;
STICKLINE(D2>0,10,20,9,0),COLORFFCC66;
DRAWTEXT(D2>0,15,'K'),COLORFFFFFF;
//RSI底背
RSI底背:IF(B3>0,-50,0),COLORYELLOW;
STICKLINE(B3>0,-20,-30,9,0),COLORYELLOW;
DRAWTEXT(B3>0,-25,'R'),COLORFFFFFF;
//RSI顶背
RSI顶背:IF(D3>0,50,0),COLORYELLOW;
STICKLINE(D3>0,20,30,9,0),COLORYELLOW;
DRAWTEXT(D3>0,25,'R'),COLORFFFFFF;
//DMI底背
DMI底背:IF(B4>0,-50,0),COLORBLUE;
STICKLINE(B4>0,0,-10,9,0),COLORBLUE;
DRAWTEXT(B4>0,-5,'D'),COLORFFFFFF;
//DMI顶背
STICKLINE(D4>0,0,10,9,0),COLORBLUE;
DMI顶背:IF(D4>0,10,0),COLORBLUE;
DRAWTEXT(D4>0,5,'D'),COLORFFFFFF;
你:=MA(CLOSE,1);
老:=(LOW+HIGH+CLOSE)/3;
板:= MA(老,5);
好:= HHV(板,10);
急卖:IF(HHV((你<好),5),100,50),COLORCYAN;
短卖:IF(HHV((你<好),10),100,50),COLORCYAN;
老板:= MA(老,5);
买卖:=LLV(老板,10);
短买:IF(LLV((你<买卖),10),50,0),COLORRED;
买点:IF(LLV((你<买卖),10),1,0);
卖点:IF(HHV((你<好),10),1,0);
TD:=SUM(MAX(MAX((HIGH - LOW),ABS((HIGH - REF(CLOSE,1)))),ABS((LOW - REF(CLOSE,1)))),5);
HD:=(HIGH - REF(HIGH,1));
LD:=(REF(LOW,1) - LOW);
DMP:=(SUM(IF(((HD > 0) AND (HD > LD)),HD,0),5) );
DMM:=SUM(IF(((LD > 0) AND (LD > HD)),LD,0),5);
神偷线:=(((DMP ) * 100) / TD);
辅助线:=((DMM * 100) / TD);
动向趋势线:=(MA(((ABS((辅助线 - 神偷线)) / (辅助线 + 神偷线)) * 100),3));
ADXR:=((动向趋势线 + REF(动向趋势线,3)) / 2);
VAR1:=MA(LOW,1);
VAR2:=MA(HIGH,2);
VAR3:=MA(CLOSE,2);
VAR7:=REF(VAR3,1);
【强弱】:=((SMA(MAX((VAR3 - VAR7),0),5,1) / SMA(ABS((VAR3 - VAR7)),5,1)) * 100);
支撑位:IF((EMA(CLOSE,15)-REF(EMA(CLOSE,15),1))/REF(EMA(CLOSE,15),1)*100>=0,REF(EMA(CLOSE,15),BARSLAST(CROSS((EMA(CLOSE,15)-REF(EMA(CLOSE,15),1))/REF(EMA(CLOSE,15),1)*100,0))+1),DRAWNULL),COLORRED,LINETHICK1;
阻力位:IF((EMA(CLOSE,15)-REF(EMA(CLOSE,15),1))/REF(EMA(CLOSE,15),1)*100<0,REF(EMA(CLOSE,15),BARSLAST(CROSS(0,(EMA(CLOSE,15)-REF(EMA(CLOSE,15),1))/REF(EMA(CLOSE,15),1)*100))+1),DRAWNULL),COLORGREEN,LINETHICK1;
VAR2:=(CLOSE-LLV(LOW,20))/(HHV(HIGH,20)-LLV(LOW,20))*100;
VAR3:=SMA(SMA(VAR2,3,1),3,1)/30;
VAR4:=EMA(VAR3,5);
VAR5:=3*VAR3-2*VAR4;
AA:=CROSS(VAR5,VAR3) AND VAR3<2.1 AND C>O;
VAR6:=(2*CLOSE+HIGH+LOW)/4;
VAR7:=LLV(LOW,13);
VAR8:=HHV(HIGH,13);
VAR9:=EMA((VAR6-VAR7)/(VAR8-VAR7)*100,13);
VARA:=EMA(0.667*REF(VAR9,1)+0.333*VAR9,2);
STICKLINE(VAR9>VARA,VAR9,VARA,3,0), COLORMAGENTA;
STICKLINE(VAR9<=VARA,VAR9,VARA,3,0), COLORYELLOW;
STICKLINE(AA,0,10,3,0),COLORBLUE;
VAR2:=(CLOSE-LLV(LOW,20))/(HHV(HIGH,20)-LLV(LOW,20))*100;
VAR3:=SMA(SMA(VAR2,3,1),3,1)/30;
VAR4:=EMA(VAR3,5);
VAR5:=3*VAR3-2*VAR4;
AA:=CROSS(VAR5,VAR3) AND VAR3<2.1 AND C>O;
VAR6:=(2*CLOSE+HIGH+LOW)/4;
VAR7:=LLV(LOW,13);
VAR8:=HHV(HIGH,13);
VAR9:=EMA((VAR6-VAR7)/(VAR8-VAR7)*100,13);
VARA:=EMA(0.667*REF(VAR9,1)+0.333*VAR9,2);
STICKLINE(VAR9>VARA,VAR9,VARA,8,0), COLORMAGENTA;
STICKLINE(VAR9<=VARA,VAR9,VARA,8,0), COLORGREEN;
STICKLINE(AA,0,10,10,0),COLORBLUE;
